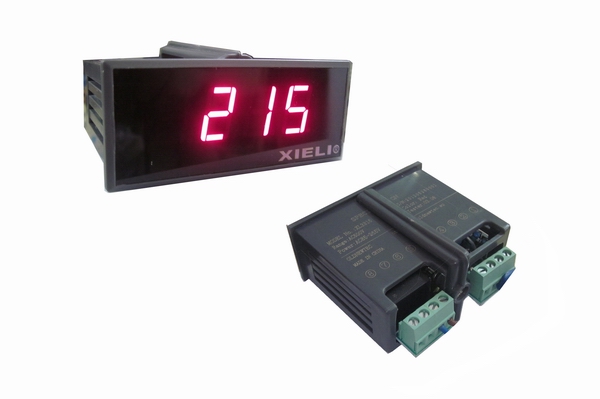

 Introduction:XL3300 3½ AC Digital Voltmeter
Power Supply:AC220V±10%
Dimension(mm):W74×H32×D69
Tapping size(mm):70×28
Install method: Guide screw fixing
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:125~135g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL3311
|
3½
|
AC199.9mV
|
100μV
|
±0.5 % +1Digit
|
100MΩ
|
AC10V
|
AC 220V
|
|
XL3312
|
3½
|
AC1.999V
|
1mV
|
±0.5 % +1Digit
|
100MΩ
|
AC35V
|
AC 220V
|
|
XL3313
|
3½
|
AC19.99V
|
10mV
|
±0.5 % +1Digit
|
10MΩ
|
AC250V
|
AC 220V
|
|
XL3314
|
3½
|
AC199.9V
|
100mV
|
±0.5 % +1Digit
|
10MΩ
|
AC500V
|
AC 220V
|
|
XL3315
|
3½
|
AC500V
|
1V
|
±1.0 % +3Digit
|
10MΩ
|
AC700V
|
AC 220V
|
|
