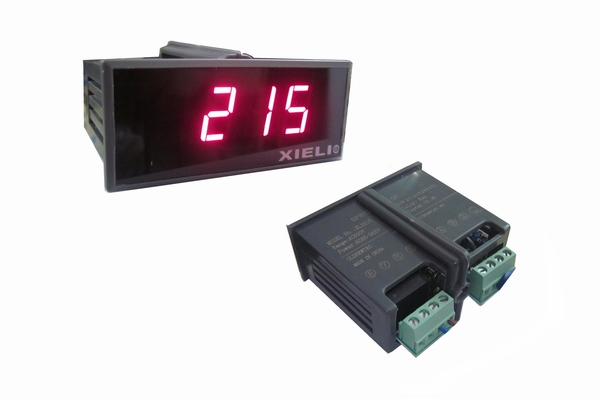

Introduction:XL3400 3½ AC Digital Ammeter
Power Supply:AC220V±10%
Dimension(mm):W74×H32×D69
Tapping size(mm):70×28
Install method: Guide screw fixing
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:125~135g
Sample Frequency:400ms
|
Model
|
digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input
impedance
|
Max. Input current
|
Power supply
|
|
XL3411
|
3½
|
AC199.9μA
|
0.1μA
|
±0.75% +3Digit
|
1KΩ
|
AC15mA
|
AC 220V
|
|
XL3412
|
3½
|
AC1.999mA
|
1μA
|
±0.75% +3Digit
|
100Ω
|
AC50mA
|
AC 220V
|
|
XL3413
|
3½
|
AC19.99mA
|
10μA
|
±0.75% +3Digit
|
10Ω
|
AC150mA
|
AC 220V
|
|
XL3414
|
3½
|
AC199.9mA
|
100μA
|
±0.75% +3Digit
|
1Ω
|
AC500mA
|
AC 220V
|
|
XL3415
|
3½
|
AC1.999A
|
1mA
|
±1% +3Digit
|
0.1Ω
|
AC3A
|
AC 220V
|
|
XL3416
|
3½
|
AC5.00A
|
10mA
|
±1% +4Digit
|
0.01Ω
|
AC6A
|
AC 220V
|
|
