Introduction:Voltmeter with RS232/RS485
Power Supply:AC220V±10%
Tapping size(mm): 90×45
Dimension(mm): W96×H48×D77
Install method: Inlay
function:

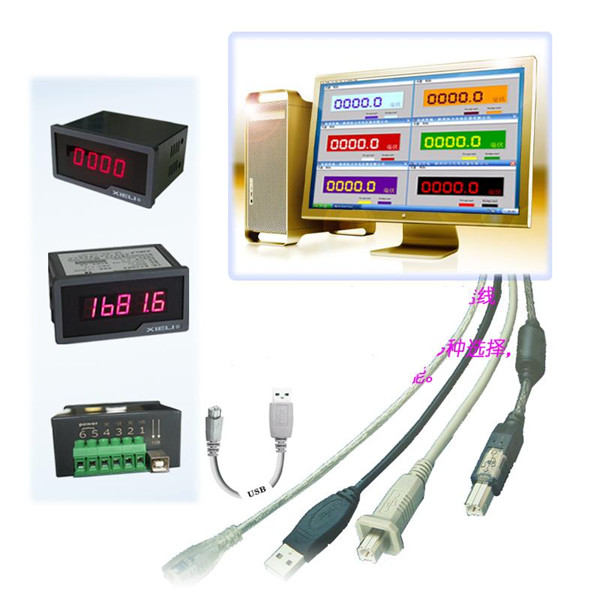

1. Through the RS232/RS485 or USB output of meter, it can truly display the synchronous value of display meter on PC conveniently.
2. If make a record for a while, the measured value changing states can print the recorded value conveniently through RS232/RS485 storage and playback.
3. It can connect multiple digital instruments. TheRS32 has many interfaces as usual, a few digital meters can connect PC simultaneously.
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
MB4101
|
4½
|
±199.99mV
|
10μV
|
±0.05 % +3Digit
|
100MΩ
|
±5V
|
AC 220V
|
|
MB4102
|
4½
|
±1.9999V
|
0.1mV
|
±0.05 % +3Digit
|
100MΩ
|
±35V
|
AC 220V
|
|
MB4103
|
4½
|
±19.999V
|
1mV
|
±0.05 % +3Digit
|
10MΩ
|
±250V
|
AC 220V
|
|
MB4104
|
4½
|
±199.99V
|
10mV
|
±0.05 % +3Digit
|
10MΩ
|
±300V
|
AC 220V
|
|
MB4105
|
4½
|
±500.0V
|
0.1V
|
±0.1% +3Digit
|
10MΩ
|
±700V
|
AC 220V
|
|
